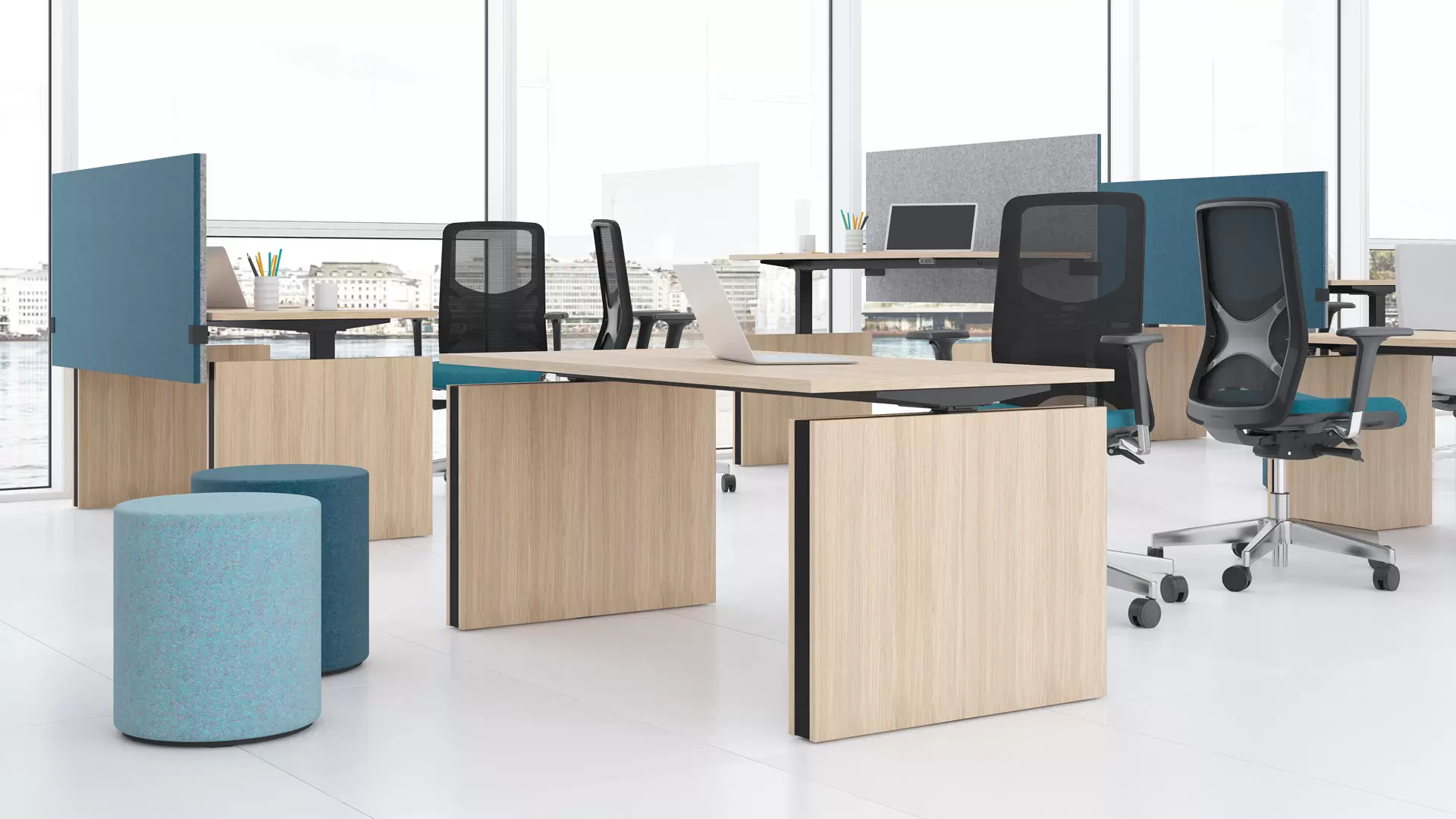

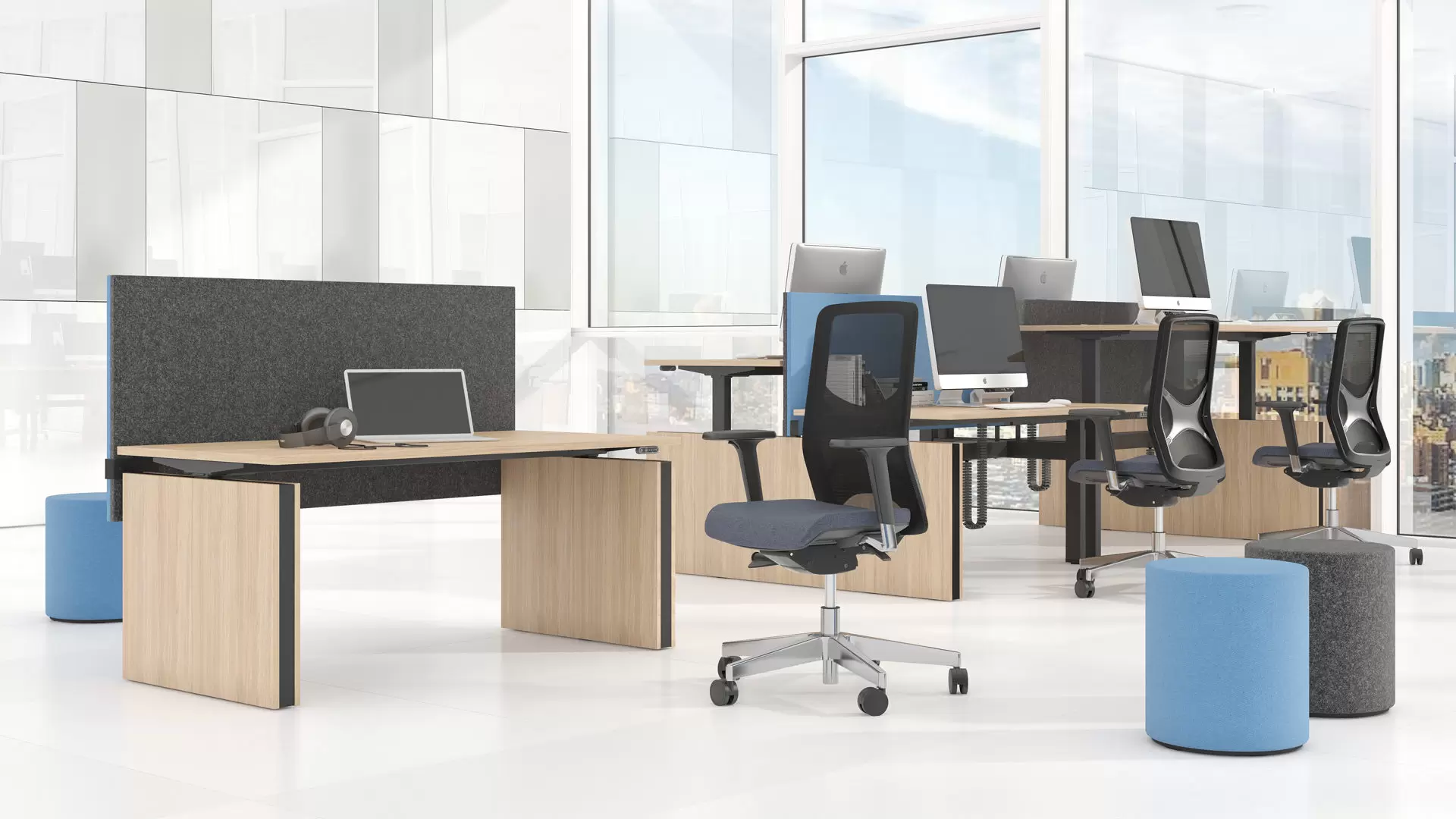

MOTION table systems can have two different types of supports: a table with metal H-type supports will have more free space for movement and storage, and for those who prefer privacy, we offer panel supports that visually close the space under the table, which provides a more aesthetically pleasant appearance.

* The price is indicated for a bench system with dimensions 1400 x 1680, H = 725 - 1225. (Table legs - covered with chipboard). Prices may vary depending on the selected materials and dimensions. (Accessories are not included in the price).

TECHNICAL INFORMATION:

Desktop:
- 25 mm MFC (melamine) with 2 mm ABS edging;
- 80 mm gap between bench desktops.

Desktop types:
- Plain desktop;
- Desktop with a cut-out for grommet and wire management;
- Desktop with a scallop for wire management;
- Sliding desktop for wire management.

Desk control button types:
- BA, TE, TA – up and down drive;
- MA – up and down drive and 3 memory positions;
- LA – up and down drive, 2 memory positions, automatic drive on memory positions, LED reminder, integrated Bluetooth.

Frame:
- L-shaped angle – 60x45x460mm;
- Metal tube – 40x20 mm;
- Powder coated metal, matches the colour of columns.

Lifting columns:
- Types: two (2) or three (3) level columns;
- Integrated anti-collision sensor PIEZO for three (3) level columns, optional anti-collision sensor for two (2) level columns;
- Two motors;
- Soft start and soft stop;
- Lifting speed: up to 38 mm / sec;
- Stroke length: DL05 (2) – 500 mm, DL06(3) – 650 mm;
- Rectangular tube dimensions: 50x80 mm;
- Lifting capacity: up to 120 kg;
- Powder coated metal, matches the colour of frame;
- Column levellers, up to 10 mm;
- Side column covers made of MFC. Colour combinations are possible.

Connecting component (DOZ008):
- Made of two metal components;
- Assembly without screw;
- Matches the colour of columns and frame;
- Distance between desktops 30 mm, distance between columns 85mm.

Electronic data power unit:
- Input: 230 V (or 120 V for US market);
- Frequency: 50 Hz (or 60 Hz for US market);
- Output: 12 - 40 V, 9A;
- Power Plug: EU, UK, CH, US;
- Energy consumption: standby 0,1 W;
- Operating Cycle: 1 minute on, 9 minutes off.

Dimensions:
- 1200 х 1640, Н = 610 - 1260 mm;
- 1400 х 1640, Н = 610 - 1260 mm;
- 1600 х 1640, Н = 610 - 1260 mm;
- 1800 х 1640, Н = 610 - 1260 mm.
