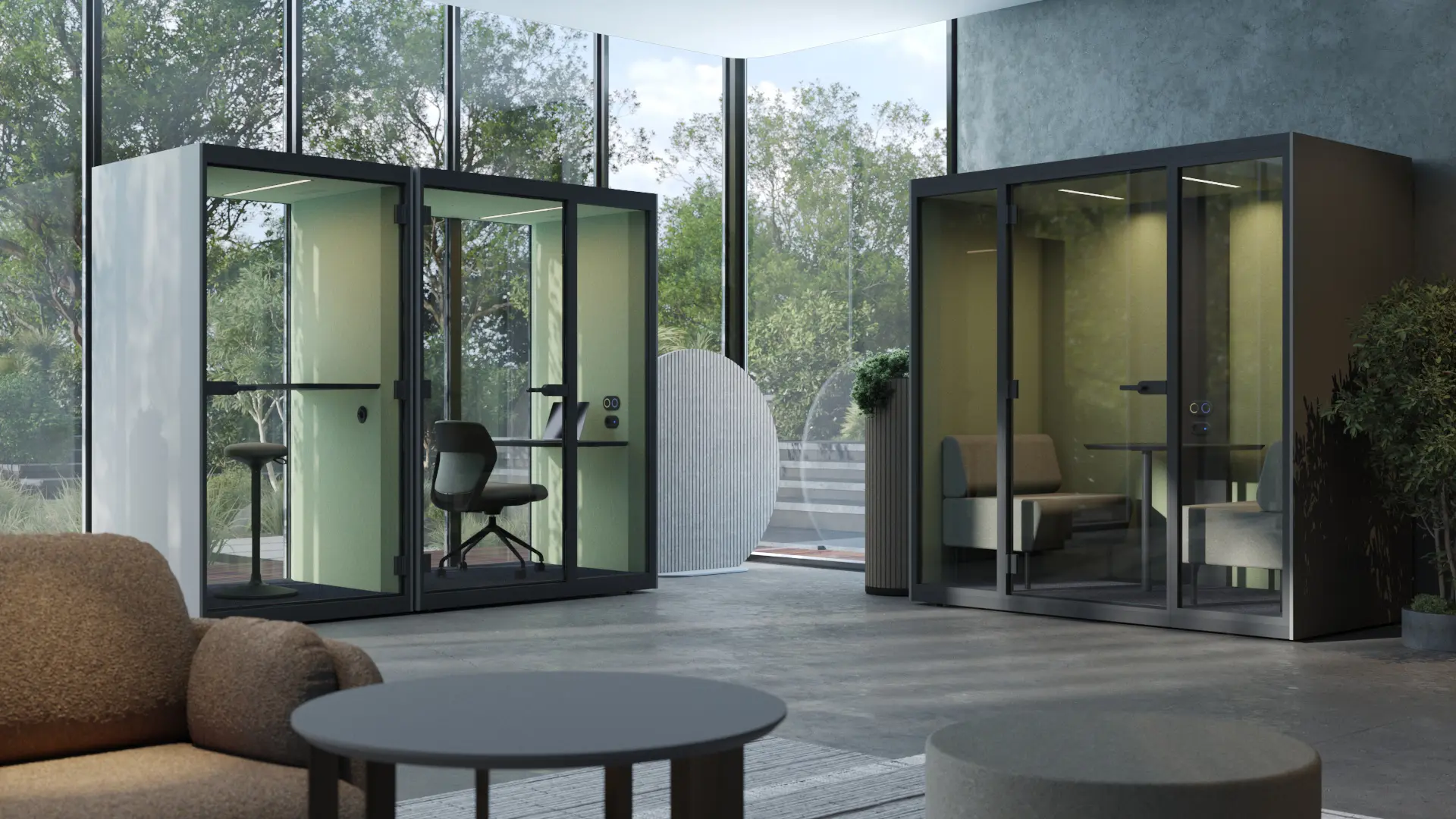

Acoustic pod with PET felt back wall

Side wall for HPL desktop and power socket
- 12 mm thick MDP (chipboard);
- 18 mm thick MDF (medium density fiberboard);
- 9 mm PET felt;
- 50x15 mm metal tube;
- Profiles made of 2 mm and 1 mm metal sheets;
- 30 mm acoustic foam;
- 30 mm plywood.

HPL desktop:
- 26 mm MDF covered in HPL with sloping painted
edges. The bottom edges of the tabletop are sloped 45°;
- Load capacity – 25 kg.

Power socket:
- AC power socket (100-240 V) with integrated USB fast charger (USB Type A+C, max 5A).

PET felt back wall:
- 25 mm thick MDP (chipboard);
- Welded and black powder coated metal frame;
- 9 mm thick PET felt.

MFC (melamine) panel or HPL panel:
- 16 mm thick MFC panels with 1 mm ABS edging;
- 17 mm thick MDF covered in HPL with 1 mm ABS edging.

Left-handed or right-handed doors:
- Powder coated aluminum profile with PVC sealing;
- 5+5 mm laminated and tempered safety glass (TSG), clear;
- Clear opening width of the door – 1100 mm;
- The top and bottom of the aluminum profile are covered with 16 mm MFC (melamine) panels with 1 mm ABS edging.

Double layered ceiling:
- Top layer made of 12 mm thick MFC (melamine) panel with 1 mm ABS edging;
- Bottom layer made of 12 mm thick MDP (chipboard) and 9 mm thick PET felt;
- Powder coated metal profiles;
- Lid for the control unit made of a 1 mm powder coated metal sheet and 9 mm thick PET felt;
- PIR sensor mounted in the center of the ceiling;
- Fan grill made of powder coated metal sheet;
- Available power supply from the ceiling (Ø60 mm cable grommet included; slot not predrilled).

Floors:
- Metal welded frame made of tube with 6 mm metal sheet support plate, powder-coated construction;
- Top layer made of 25 mm thick MFC (melamine) with 2 mm ABS edging;
- 3,5 mm thick floor carpet made of polyamide, with antistatic properties;
- Feet with height adjustment up to +45 mm;
- Optional castors available, made of zinc steel housing and polyurethane wheel.

Control box:
- Input (GST18i3 male): 100-240 V;
- Output (GST18i3 female): 100-240 V;
- Frequency: 50/60 Hz;
- Power cable: EU, UK, FR, CH, US – GST18i3 female, 3 m;
- Power output cable length: 3 m - GST18i3 male - GST18i3 female;
- Power consumption – max 110W, standby 4,5W.

Lighting:
- LED bar mounted into the ceiling (15,6 W), color temperature 4000K;
- Replacement LED can only be purchased from the manufacturer of the acoustic pod.

Ventilation:
- 2x air supply fans are installed in the ceiling;
- Maximum airflow approx. 200 m⊃3;/h.

Power outlet:
- AC power socket (100-240 V) with integrated USB fast charger (USB Type A+C, max 5A);
- Power socket standards: EU, FR, UK, CH, US.
